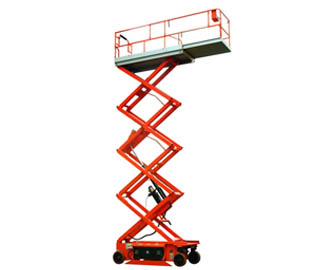

The lifting platform has the function of automatic stepping and turning, with non-manpower draught and non-external power source. It is flexible and convenient for moving for aloft work, which is the ideal aloft working facility for safety production in modern enterprise. All models of shears-fork type aloft working platform can be changed to the automatic hydraulic lifting platform.
High-quality construction steel.
Braking/manual optional.
The shears-fork mechanical structure provides higher stability when the platform elevating. On the other hand, the wide working platform and higher loading capacity are suitable for various aloft work requirement, and multi-persons operation at the same time.

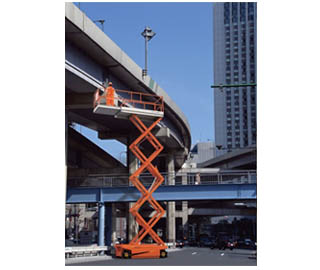

It is mainly applied for factory, warehouse, bus station, dock, airport, in aloft working, commodity convey, assembly line corollary equipment, and etc.
Equipped with over-load safety device, protection device for hydraulic pipe bursting, and emergency descent device, which increase safety for operation.
Specifications of JCPT(I) Self-propelled Scissors Lift:
Model | JCPT8(Ⅰ) | JCPT9.5(Ⅰ) | |
---|---|---|---|
Safe working load | kg | 450 | 400 |
Extended platform safe working load | kg | 112 | |
Outdoor use wind speed 45km/h | kg | 100 | |
Maximum working height | mm | 10000 | 11500 |
Maximum platform height | mm | 8000 | 9500 |
Overall length | mm | 2510 | |
Overall width | mm | 1150 | |
Overall height | mm | 2450 | |
Working platform size | mm | 2500X1120 | |
Platform extended size | mm | 1270 | |
Minimum ground clearance | mm | 120 | |
Wheel base | mm | 2080 | |
Minimum turning radius (inner wheel/ outer wheel) | mm | 1930/3740 | |
Drive motor | 2x24VDC/1.5kw | ||
Lifting motor | 24VDC/3kw | ||
Driving speed (furling state) | km/h | 4 | |
Lifting state | km/h | 1.1 | |
Lifting/ descending speed | sec | 70/60 | 89/88 |
Accumulator | 4x6V/250Ah | ||
Charger | 24V/25A | ||
Maximum gradeability | % | 25 | |
Working maximum allowable angle | 。 | 3 | |
Tyre | 406x125 | ||
Overall weight | kg | 2200 | 2280 |
