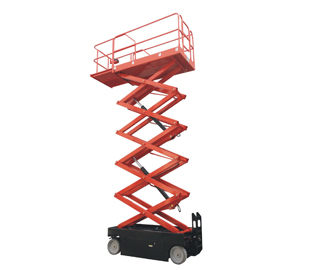

FSJY Full electric work platform, both driving and lifting are powered by electricity, easy-operation design to assure all operation could be made by only one person. This model sells very well and wins a high reputation all over the world. High quality imported components to keep its very perfect performance.
1. Electronic system imported directly from PG United Kingdom.
2. Battery imported from USA.
3. Driving wheels and balance wheels assembly to keep the safety.
4. Spraying plastics appearance.
5.2-3 days working time of one time charging.
6. With safety-falling equipment.
Specifications of FSJY Hi-lift Self-propelled Scissors Lift:
|Max. working height||mm||8000||10000||12000|
|Max. Platform height||mm||6000||8000||10000|
|Folding Max. height (guardrail unfolding)||mm||2150||2275||2400|
|Folding Max. height (guardrail removed)||mm||1190||1315||1440|
|Platform extend size||mm||900||900||900|
|Min. ground clearance (lowered)||mm||110||110||110|
|Min. Ground clearance (lifted)||mm||20||20||20|
|Min. Turning radius (inner wheel)||mm||0||0||0|
|Min. Turning radius (outer wheel)||mm||2100||2100||2100|
|Runing speed (rising)||km/h||4||4||4|
|Max. Climbing ability||%||20||20||20|
|Max. working allowable angle||°||2-3||2-3||2-3|
|Control type||Electro-hydraulic proportion control|
|Hydraulic drive||Double rear wheel|
|Wheelsize (non-marking solid tire)||381x127||381x127||381x127|
