The product has passed the CE certification and is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc.

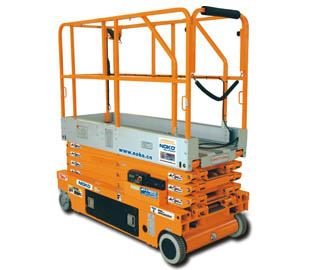

1. The electric scissor lifts II is controlled based on the imported advanced intelligent technology.
2. It is powered by DC, can move automatically, has the function of exchanging low and high speeds, can be controlled manually and requires no manual push.
3. The driving motor has the automatic braking function.
4. It can climb to a certain gradient.
5. It has the function of protection of floor pit and tilt alarm.
6. The platform can be extended horizontally.
7. The malfunction can be displayed in codes. The emergent drop will be locked.
8. The electricity recharge is protected. In recharging.
Specifications of JCPT(II) Self-propelled Scissors Llift:
|Safe working load||kg||300||250|
|Extended platform safe working load||kg||100|
|Outdoor use wind speed 45km/h||kg||90|
|Maximum working height||mm||8000||9400|
|Maximum platform height||mm||6000||7400|
|Working platform size||mm||1870X760|
|Platform extended size||mm||900|
|Minimum ground clearance||mm||80|
|Minimum turning radius (inner wheel/ outer wheel)||mm||950/2460|
|Driving speed (furling state)||km/h||4|
|Lifting/ descending speed||sec||40/35||42/40|
|Working maximum allowable angle||。||3|
