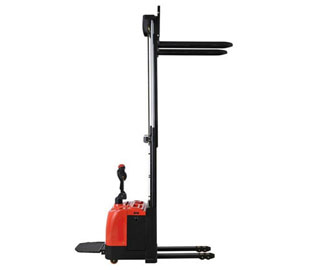

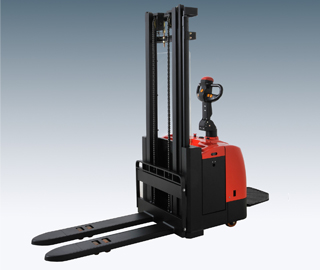

Home » Products » Pallet Stacker » Full-electric Pallet Stacker » ES16-EX Full-electric Pallet Stacker

Detailed parameters and tables

Features of ES16-EX Full-electric Pallet Stacker

1. Durable and rigid frame construction ensure the stackers to handle heavy loads.
2. Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
3. Sideway battery exchange to reduce intervals, ensure working efficiency and productivity.
4. A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.
5. Tilter head ergonomically designed for maximum operator comfortable, and control buttons positioned to allow operation with either hand.
6. limit switch mounted on top of mast to precisely set the max. Lifting height, avoid any risk of lifting motor overload.
7. Robust and rigid mast configuration optimize stackers lifting stability and safety.
8. Safe Grid covered on the mast to protect operator from any injured risk.

Specifications of ES16-EX Full-electric Pallet Stacker:

Characteristics	Model			ES16 25EX	ES16 30EX	ES16 33EX	ES16 36EX	ES16 40EX	ES16 42EX	ES16 45EX	ES16 50EX
	Rated capacity		kg	1600					1600
	Load center distance		mm	600					600
	Type of Operation			Pedestrian/Standing					Pedestrian/Ride seated
Dimensions	Max lift height		mm	2500	3000	3300	3600	4000	4200	4500	5000
	Mast Lowest height		mm	55	55	55	85	85	85
	Standard fork (L×W)		mm	1070×100	1070×100	1070×100	1150×550	1150×550	1150×550
	Min turning radius		mm	1482	1482	1465	1465	1465	1680
	Min aisle width		mm	2780					2885
	Min clearance		mm	50	50	30	30	30	30
	Max travel speed	laden	km/h	3/5					3/5
Performance	Max travel speed	unladen	km/h	3/5					3/5
	Max lifting speed	laden	mm/s	130					130
	Max lifting speed	unladen	mm/s	230					230
	Max lowing speed	laden	mm/s	130					130
	Max lowing speed	unladen	mm/s	230					230
	Gradeability	laden	%	5					5
	Gradeability	unladen	%	7					7
	Overall length		mm	1875					1980
	Body length		mm	765					840
	Body width		mm	850					895
	Body width		mm	830					830
	Max mast height		mm	3500/3800/4100/4400					4980/5180
	Overall static state height		mm	1980/2135/2335/2500					1985	2085	2235
	Type of wheels(front/rear)			PU					PU
Wheel	Num of wheels			one drive wheel+two balanced wheels +four support wheels
Types	Wheelbase		mm	1307					1390
Brakes	Type			electromagnetic					electromagnetic
Motor	Travel		KW	AC 1.5					AC 1.5
Motor	Lifting		KW	DC 3					DC 3
Battery	Voltage		V	24					24
Battery	Capacity		Ah	280					280
Controller	Control/model/specification			CURTIS/1230/200A					CURTIS/1230/200A
Steering									Electric power steering

Remarks:Mast can be ordered with your requirements.
