1. Capacity : 1.2-1.5 ton.
2. Max. Lifting Height : 1.6-3.3 m.
3. Designed for stacking pallets on racks and transporting goods for short distance.
- - Heavy duty design with C style mast material.
- - Imported electric control system and hydraulic unit.
- - Operating steady and flexible.
- - Low noise, no pollution, and high reliability.
- - International typical style.

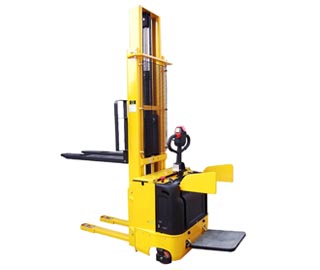

- - Can be equipped with Stand-on Platform, Handrail and Germany REMA handle.

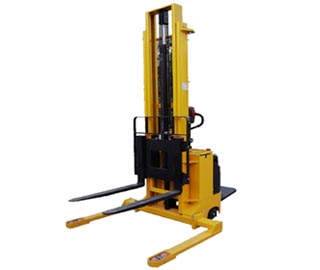

Specifications of CDD Full-electric Pallet Stacker (standard):
Model | CDD1.2 | CDD1.5 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Standard (CDD) | CDD1.2 /16 |
CDD1.2 /24 |
CDD1.2 /29 |
CDD1.2 /31 |
CDD1.2 /33 |
CDD1.5 /16 |
CDD1.5 /24 |
CDD1.5 /29 |
CDD1.5 /31 |
CDD1.5 /33 |
||
With Stand-On Platform (CDD-T) | CDD1.2 /16T |
CDD1.2 /24T |
CDD1.2 /29T |
CDD1.2 /31T |
CDD1.2 /33T |
CDD1.5 /16T |
CDD1.5 /24T |
CDD1.5 /29T |
CDD1.5 /31T |
CDD1.5 /33T |
||
With wide Straddle Leg (CDD-W) | CDD1.2 /16W |
CDD1.2 /24W |
CDD1.2 /29W |
CDD1.2 /31W |
CDD1.2 /33W |
CDD1.5 /16W |
CDD1.5 /24W |
CDD1.5 /29W |
CDD1.5 /31W |
CDD1.5 /33W |
||
Capacity Q | Kg | 1200 | 1500 | |||||||||
Max Lifting Height H3 | mm | 1600 | 2450 | 2900 | 3100 | 3300 | 1600 | 2450 | 2900 | 3100 | 3300 | |
Max Height of Stacker h4 | mm | 2244 | 3094 | 3544 | 3744 | 3944 | 2244 | 3094 | 3544 | 3744 | 3944 | |
Net Weight (without battery) | CDD | Kg | 613 | 670 | 692 | 705 | 713 | 620 | 677 | 699 | 712 | 720 |
CDDT | Kg | 624 | 680 | 702 | 715 | 724 | 624 | 680 | 702 | 715 | 724 | |
Load Center C | CDD, CDDT | mm | 600 | |||||||||
Min Height of Forks | CDD, CDDT | mm | 90 | |||||||||
Fork Length | CDD, CDDT | mm | 1150 (Steel plate fork) | |||||||||
Fork Width | CDD, CDDT | mm | 540 | |||||||||
Fork Width N | CDD, CDDT | mm | 160 | |||||||||
Length of stacker | CDD | mm | 1930 | |||||||||
CDDT | mm | 2424 | ||||||||||
Width of Stacker B | CDD, CDDT | mm | 840 | 940 | 840 | 940 | ||||||
Height of Stacker | CDD, CDDT | mm | 2090 | 1800 | 2025 | 2125 | 2225 | 2090 | 1800 | 2025 | 2125 | 2225 |
Min Turning Radius | CDD | mm | 1525 | |||||||||
CDDT | mm | 2000 | ||||||||||
Battery | 240AH/24V 200Kg |
