1. AC motor and electric control system, reliable performance.
2. Electric power steering, swiftly turning.
3. Human oriented design, easy operation, good looking, safe and durable.
4. The height of lifting can be ordered.

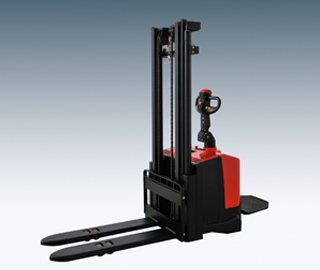

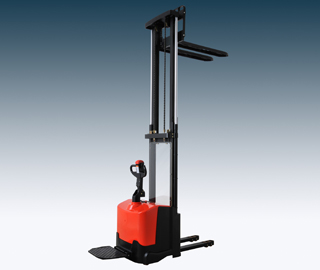

Specifications of ES12-EX Full-electric Pallet Stacker:
| Model designation | ES1230EX/ES1233EX/ES1236EX | |
|---|---|---|
| Drive unit | Battery | |
| Operator type | Walkie (platform option) | |
| Load capacity | Q (kg) | 1200 |
| Tyre type | PU/PU | |
| Tyre size, operator side | mm | Φ248X75 |
| Height, mast lowered | h1 (mm) | 1980/ 2135/ 2335 |
| Lift height | h3 (mm) | 3000/ 3300/ 3600 |
| Height, mast extended | h4 (mm) | 3500/ 3800/ 4100 |
| Height of straddle arms or load wheel casing | h8 (mm) | 80 |
| Fork height, lowered | h13 (mm) | 85 |
| Overall length | l1 (mm) | 1875 |
| Overall width | b1/ b2 (mm) | 720 |
| Fork dimensions | s/ e/ l (mm) | 55/185/1150 or 1200 |
| Fork carriage width | b3 (mm) | 700 |
| Outside fork width, minimum/ maximum | b5 (mm) | 550/ 600/ 650 |
| Width between straddle arms | b4 (mm) | 265/ 315/ 365 |
| Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2160 |
| Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2130 |
| Travel speed, laden/ unladen | km/ h | 3-5 / 3-5 |
| Lifting speed, laden/ unladen | m/ s | 0.13 / 0.23 |
| Lowering speed, laden/ unladen | m/ s | 0.13 / 0.23 |
| Maximum gradeability, laden/ unladen S2 5 min. | % | 5/7 |
| Drive motor rating S2 60 min. | kW | 1.5 |
| Lift motor rating at S3 15% | kW | 3 |
| Battery voltage/ rated capacity (5h) | V/ Ah | 24 /210 |
| Battery weight (with box) | kg | 200 |
| Battery compartment dimensions l/ w/ h | mm | 650/ 200/ 575 |
| Type of drive control | AC | |
| Manufacturer | CURTIS | |
| Steering | Power steering |
