Capacity : 1.2-1.5 ton.
Fork has the function of lifting and lowering, it is more convenient while climbing and going down slope. It can carry double pallets one time with high efficiency.
1. Imported electric control unit and hydraulic unit.
2. High stability and good operating flexibility.
3. Low noise, no pollution, and high reliability.
4. Traditionally international style.
It operates simple, steady and reliable. Person can go together with stacker.

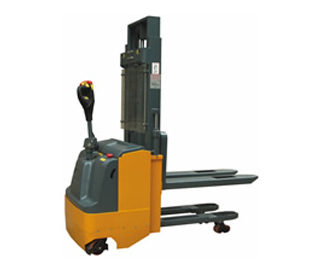

Specifications of CDD-E Full-electric Pallet Stacker (double pallet):
Model | CDD1.2E | CDD1.5E | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Standard (CDD-E) | CDD1.2 E/16 |
CDD1.2E /24 |
CDD1.2E /29 |
CDD1.2E /31 |
CDD1.2E /33 |
CDD1.5E /16 |
CDD1.5E /24 |
CDD1.5E /29 |
CDD1.5E /31 |
CDD1.5E /33 |
Capacity Q (Kg) | 1200 | 1500 | ||||||||
Max Lifting Height H3 (mm) | 1600 | 2450 | 2900 | 3100 | 3300 | 1600 | 2450 | 2900 | 3100 | 3300 |
Load Center C (mm) | 600 | |||||||||
Min Height of Forks (mm) | 90 | |||||||||
Fork Length (mm) | 1150 | |||||||||
Fork Width (mm) | 540 | |||||||||
Min Height of Stacker h1 (mm) | 2090 | 1800 | 2025 | 2125 | 2225 | 2090 | 1800 | 2025 | 2125 | 2225 |
Max Height of Stacker h4 (mm) | 2246 | 3096 | 3546 | 3746 | 3946 | 2246 | 3096 | 3546 | 3746 | 3946 |
Width of Stacker B (mm) | 940 | 940 | 940 | 1080 | 1080 | 940 | 940 | 940 | 1080 | 1080 |
Length of Stacker (mm) | 1925 | |||||||||
Min Turning Radius (mm) | 1525 | |||||||||
Net Weight (without battery) (Kg) | 613 | 670 | 692 | 705 | 713 | 620 | 677 | 699 | 712 | 720 |
Battery | DG240AH/24V 6Q-100AH/24V |

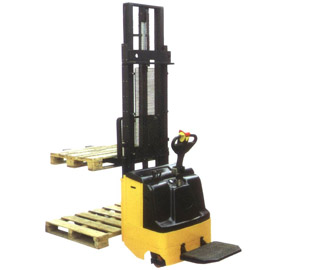

Double pallet stacking power stacker
