1. Smooth travel and lift with excellent controls to reduce product damages and increases productivity.
2. Lift limit switch operates at maximum lift height to shut off pump motor.
3. A heavy-duty 24-volt electrical system provides good travel and lift speeds.
4. High quality hydraulic pump assures very little noise, maximum efficiency and durability.
5. Drive units is equipped with an electromagnetic brake that is spring applied and electrically release. Brake is activated by the control handle position. The handle ergonomically designed with a raising, lowering and horn bottom.
6. Speed automatically reduces when driving with the forks at a height of 12" or higher.
7. Small turn radius makes it suitable for narrow passage ways.
8. The CURTIS electronic controller helps provide plenty of low end torque while increasing the motor and battery lift.
9. Foot pedal reduces fatigue.
10. Conforms to EN 1726-1 and EN 1175-1.

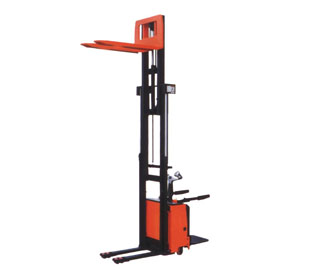

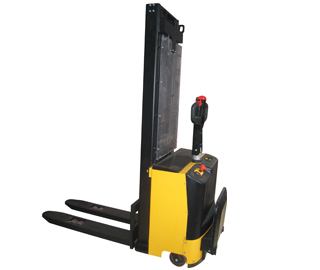

Specifications of CL Full-electric Pallet Stacker:
|Fork overall width||mm||570/685||570/685||570/685||570/685|
|Fork overall length||mm||1150||1150||1150||1150|
|Min. Turning radius||mm||1436||1436||1436||1615|
